HOME / PRODUCTS / 12V SERIES / 12V 200AH LIFEPO4 BATTERY
MODEL SC-RV12100 · 12V SERIES · IN PRODUCTION

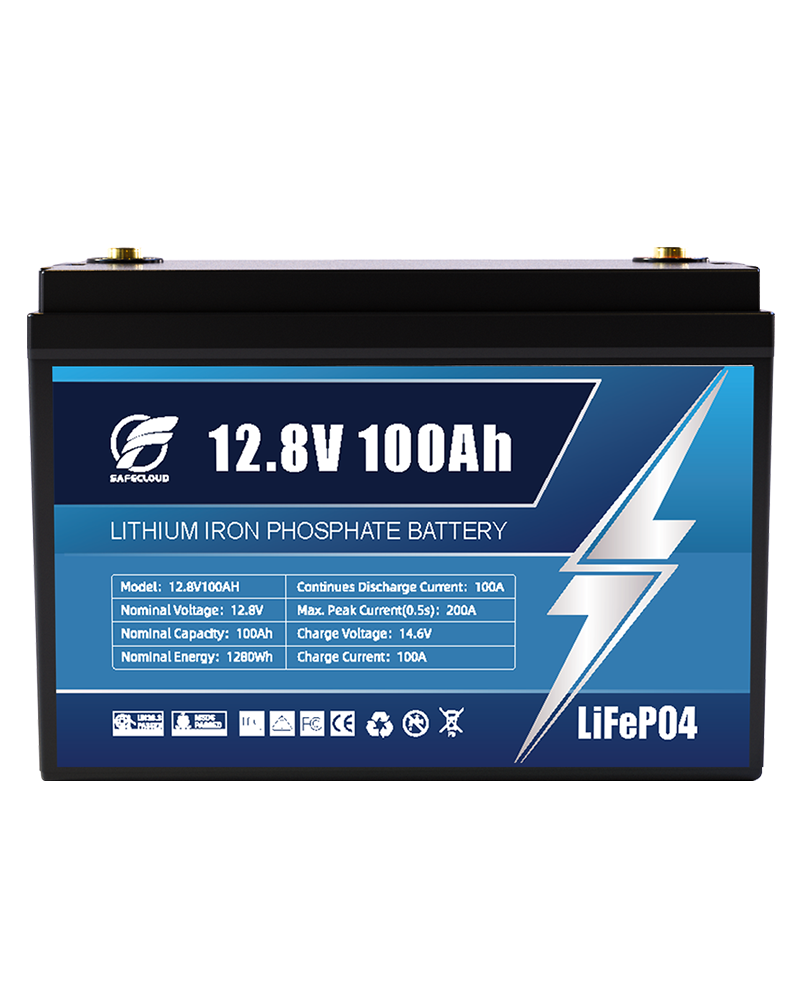

12V 100Ah LiFePO4 Battery — OEM & Wholesale Deep Cycle Lead-Acid Replacement
- CE
- FCC PART 15
- UN38.3
- RoHS
- MSDS
- 5-YR WARRANTY
Nominal voltage / capacity
12.8V · 100Ah
Nominal energy
1,280Wh
Cycle life
3,000+ @80% DoD
Charge / discharge current
100A / 100A
Peak discharge
200A for 10S
Cell configuration
3.2V100Ah · 4S1P
Size / Weight
330 × 172 × 215 mm · 12kg
10 units
MOQ
7 days
SAMPLE
15–25d
LEAD TIME
OEM ✓
YOUR BRAND
Designed for solar storage · RV · marine · backup power · factory-direct B2B supply and customization.
10 units
MOQ
15–25 days
PRODUCTION LEAD
FOB Shenzhen
TRADE TERMS · DDP AVAIL.
5-year
OEM WARRANTY
UN38.3
AIR & SEA CERTIFIED
—WHY THIS 12V PLATFORM WORKS
Compact deep-cycle LiFePO4 power for replacement, solar and backup markets
3.2V100Ah LiFePO4 Cells
Configured as 4S1P for a stable 12.8V platform with 100Ah nominal capacity and 1280Wh energy.
100A Continuous Output
Supports 100A charge / 100A discharge, with 200A peak discharge for 10 seconds for short surge demand.
Built-In BMS Protection
Battery management protection for safer charging, discharging and system operation in RV, marine and backup power projects.
IP64 Protected Housing
Compact black case design for practical use in mobile and outdoor-adjacent power systems, with industrial terminals and clear labeling.
Lead-Acid Replacement Format
12V LiFePO4 battery solution for replacing heavy lead-acid batteries in deep-cycle applications with lower weight and better usable energy.
OEM/ODM Ready
Supports project customization, brand label, carton design and batch supply for distributors, installers and B2B channel buyers.
— FULL SPECIFICATIONS
SC-RV12100 technical specifications
Core product parameters for the 12.8V 100Ah LiFePO4 battery platform. Final OEM configuration can be confirmed before production.
| Electrical | Mechanical & Environment | ||
|---|---|---|---|
| Model | FT-12100A | Dimensions (L×W×H) | 330 × 172 × 215 mm |
| Nominal voltage | 12.8V | Weight | 12 kg |
| Nominal capacity | 100Ah | Ingress protection | IP64 |
| Nominal energy | 1280Wh | Cell type | 3.2V100Ah LiFePO4 |
| Charging voltage | 14.6V | Cell series & parallel | 4S1P |
| Discharge voltage | 12V | Charge temperature | 0°C ~ 50°C |
| Charge current | 100A | Discharge temperature | -20°C ~ 60°C |
| Discharging current | 100A | Cycle life | ≥2000 times |
| Max discharge current | 200A / 10S | Certifications | CE · FCC · UN38.3 · MSDS |
| Max discharge power | 1000W | Application | RV · Marine · Solar storage · Backup power |
Specifications at 25°C ambient unless noted · Subject to engineering confirmation per OEM configuration
— SYSTEM EXPANSION & CAPACITY FAMILY
Build one 12V deep-cycle product line around 50Ah, 100Ah and higher-capacity options
Use the SC-RV12100 as the core 12V 100Ah SKU, then extend the same visual system to smaller and larger battery models for wholesale and project buyers.
| Model | SC-RV1250 | SC-RV12100 (this page) | SC-RV12200 | SC-RV12300 |
| Capacity | 50Ah / 640Wh | 100Ah / 1280Wh | 200Ah / 2560Wh | 300Ah / 3840Wh |
| Typical current | 50A | 100A | Project configuration | Project configuration |
| Positioning | Compact backup / small solar | Core deep-cycle replacement SKU | Longer runtime systems | High-capacity 12V banks |
| Applications | Lighting · small backup | RV · boat · solar · backup power | RV · off-grid · marine | Off-grid · project systems |
| OEM branding | Available | Available | Available | Available |
Full range: 12V 50–400Ah · 24V 50–300Ah · 48V ESS — mixed-model container loading supported
— OEM & PRIVATE LABEL
Turn the 12V 100Ah platform into your own branded battery SKU
For distributors, installers and channel sellers, the SC-RV12100 can be supplied with your brand identity, packaging style and project documentation.
🏷️
Brand Label & Case Design
Logo, product label, warning label and model sticker can be adapted to your market and language requirements.
⚙️
Retail or Project Packaging
Neutral carton, branded carton, instruction manual and pallet labeling for wholesale or project delivery.
📱
Export Documentation
CE, FCC, UN38.3 and MSDS documentation support for customs clearance and B2B buyer verification.
📦
BMS Parameter Confirmation
Full-color retail box, manual with your branding, inserts and FBA-ready labeling.
📄
Application Matching
CE / FCC / UN38.3 / MSDS documentation re-issued in your company name for customs and marketplaces.
🔧
Batch Supply Support
Factory-direct production coordination, pre-shipment inspection and export packing for bulk orders.
— APPLICATIONS
Where Buyers Use The SC-RV12100 Battery
RV & Camper Van
Drop-in AGM replacement · boondocking banks
→
Marine & Boat
House banks · 30–70lb trolling motors
→
Solar Storage & Backup
Small solar systems backup power -off-grid equipment
→
This page is written for deep-cycle applications. For engine starting or high-cranking use, confirm the proper battery model with engineering first.
— PACKAGING & LOGISTICS
Export-Ready Packing For 12V LiFePO4 Battery Orders
| Packing & Shipping Reference | |
|---|---|
| Product size | 330 × 172 × 215 mm |
| Product weight | 12 kg |
| Packaging type | Single carton with protective foam |
| OEM packing | Neutral carton / branded carton available |
| Shipping documents | UN38.3 · MSDS · CE · FCC |
| Trade support | Bulk order, project order and OEM/ODM support |
A
Battery-safe export packing
Protective foam, carton protection and document support for lithium battery transport.
B
Neutral or private-label supply
Suitable for distributors who need their own label, manual and outer carton design.
C
Pre-shipment inspection
Capacity, voltage, appearance and packing checks can be documented before shipment.
D
Project delivery support
Batch supply planning for RV, marine, solar storage and backup power customers.
PRODUCT FAQ
What buyers ask about the SC-RV12100
Use a charger designed for 12.8V LiFePO4 batteries. The product charging voltage is 14.6V, and the rated charge current is 100A. For project use, confirm charger settings before deployment.
Yes. It is positioned as a 12V deep-cycle LiFePO4 replacement battery for applications such as RV, marine, solar storage and backup power. Confirm installation space, terminal layout and charger compatibility before replacement.
The rated discharging current is 100A. The maximum discharge current is 200A for 10 seconds, with maximum discharge power listed as 1000W.
Yes. OEM/ODM options can include logo label, model sticker, outer carton, instruction manual, project documentation and application-specific confirmation before production.
The SC-RV12100 specification record includes CE, FCC, UN38.3 and MSDS. These are important for customs clearance, lithium battery transport and B2B buyer verification.
Recommended applications include RVs, boats, solar energy storage and backup power systems. For engine starting or high-cranking applications, ask engineering to confirm whether a different battery model is required.
