HOME / PRODUCTS / 48V SERIES / 51.2V 100AH LIFEPO4 BATTERY
MODEL SC-RV12200 · 12V SERIES · IN PRODUCTION
51.2V 100Ah Wall Mounted LiFePO4 Battery for 5.12kWh Home Energy Storage
- CE
- FCC PART 15
- UN38.3
- RoHS
- MSDS
- 5-YR WARRANTY
Energy / Usable capacity
2,560Wh · 100% DoD
BMS continuous / surge
200A / 400A (5s)
Cycle life
4,000+ @80% DoD
Cells
Grade-A CATL / EVE prismatic
Monitoring
Bluetooth 5.0 · white-label app
Low-temp protection
Charge cutoff 32°F / 0°C
Size / Weight
Group 31 · 20.9kg / 46 lbs
10 units
MOQ
7 days
SAMPLE
15–25d
LEAD TIME
OEM ✓
YOUR BRAND
Engineer response in < 24h · Tiered pricing at 50 / 200 / 1,000 units · NDA available
10 units
MOQ
15–25 days
PRODUCTION LEAD
FOB Shenzhen
TRADE TERMS · DDP AVAIL.
5-year
OEM WARRANTY
UN38.3
AIR & SEA CERTIFIED
— WHY THIS PLATFORM SELLS
Built around the questions solar installers and energy-storage buyers ask first
5.12kWh LFP Energy Module
51.2V nominal voltage and 100Ah rated capacity provide 5,120Wh for residential solar storage and backup applications.
100A Charge & Discharge
Designed for up to 100A continuous charging and discharging, subject to the final BMS and project configuration.
RS232 / RS485 / CAN
Multiple communication interfaces support system integration, inverter protocol matching and installer diagnostics.
Wall-Mounted Installation
The vertical enclosure saves floor space and keeps the home energy-storage installation clean and organized.
LCD Status Monitoring
Local display provides quick access to battery operating data, status and alarms during installation and maintenance.
OEM / Private Label Ready
Branding, label artwork, enclosure details, packaging, manuals and communication settings can be reviewed for volume projects.
—Technical data
51.2V 100Ah wall mounted LiFePO4 battery specifications
The following values are based on the previously supplied FT51.2V100AH / FT-48100 product data. Final production parameters should match the approved drawing, label and project datasheet.
| Electrical | Value | Mechanical / Interface | Value |
|---|---|---|---|
| Model | FT51.2V100AH / FT-48100 | Installation | Wall mounted |
| Battery chemistry | LiFePO4 | Display | LCD |
| Nominal voltage | 51.2V | Communication | RS232 / RS485 / CAN |
| Rated capacity | 100Ah | Parallel communication | RS485 parallel |
| Rated energy | 5.12kWh / 5,120Wh | Ingress protection | IP20 |
| Operating voltage range | 40V–58.4V | Dimensions | 675 × 400 × 185mm |
| Standard charge voltage | 58.4V | Net weight | 59 ± 0.5kg |
| Maximum charge current | 100A | Cell configuration | 16S1P |
| Maximum discharge current | 100A | Primary applications | Home ESS · Solar storage · Backup power |
| BMS protection | Overcharge · Over-discharge · Overcurrent · Short circuit · Temperature | Documentation | Confirm CE / UN38.3 / MSDS / IEC 62619 scope before publishing |
Important: IP rating, dimensions, net weight, cycle-life statement, certification scope and inverter protocol file must be checked against the final order version before this page goes live.
Specifications at 25°C ambient unless noted · Subject to engineering confirmation per OEM configuration
Communication support for inverter and battery-system integration
Communication hardware does not automatically guarantee compatibility. Safecloud can review the inverter model and protocol requirement before sampling or bulk production.
Available communication interfaces
Example compatibility review workflow
— 51.2V product family
Use one visual system across wall-mounted, rack, stackable and floor-standing models
Buyers can select the form factor that matches installation space, system design and project capacity while keeping one consistent Safecloud product language.
| Product | FT-48100 Wall (this page) | FT-CABINET-48100 | FT-51.2V100Ah Stack | 51.2V 300Ah Floor |
|---|---|---|---|---|
| Energy | 5.12kWh | 5.12kWh | 5.12kWh | 15.36kWh |
| Capacity | 100Ah | 100Ah | 100Ah | 300Ah |
| Form factor | Wall mounted | Rack mounted | Stackable module | Floor standing |
| Communication | RS232 / RS485 / CAN | RS232 / RS485 / CAN | RS232 / RS485 / CAN | RS232 / RS485 / CAN |
| Typical buyer | Home ESS installer | System integrator | Expandable ESS brand | High-capacity project buyer |
| OEM branding | Available | Available | Available | Available |
— OEM & PRIVATE LABEL
Build the wall-mounted battery around your brand and target market
For distributors, installers, energy brands and project contractors, the FT-48100 platform can be reviewed for branding, documentation, communication and packaging customization.
🏷️
Logo & Product Label
Logo printing, nameplate design, warning labels, serial-number logic and market-specific product information.
⚙️
Enclosure & Interface
Case color, front-panel layout, display window, terminal arrangement and installation accessories subject to engineering review.
📱
BMS & Communication
Charge/discharge thresholds, alarm settings, CAN/RS485 protocol and inverter communication configuration.
📦
Packaging & Manuals
Branded cartons, labels, installation manual, quick-start guide and project-specific packing requirements.
📄
Documentation Support
Available test reports and transport documents are reviewed according to the exact configuration and destination market.
🔧
Pre-Production Sample
Approve the enclosure, label, protocol, packaging and operating data before the bulk production configuration is locked.
— APPLICATIONS
Designed for residential solar, backup power and distributed energy-storage projects

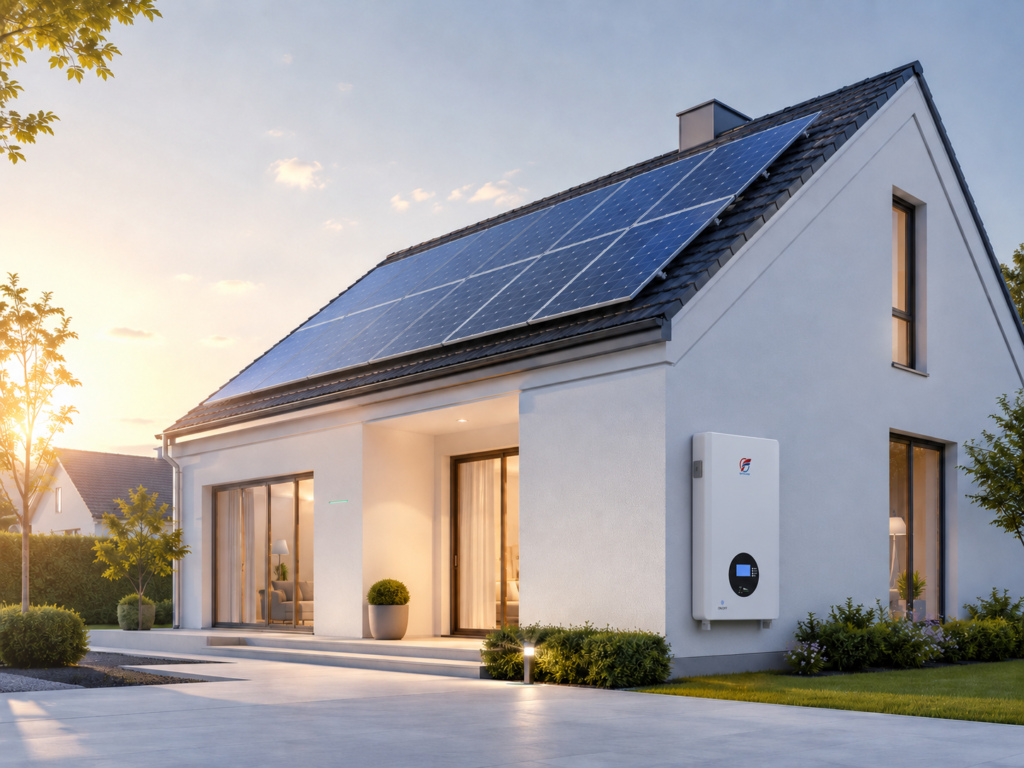

Residential Solar Storage
Store daytime PVgeneration for evening household loads.
→

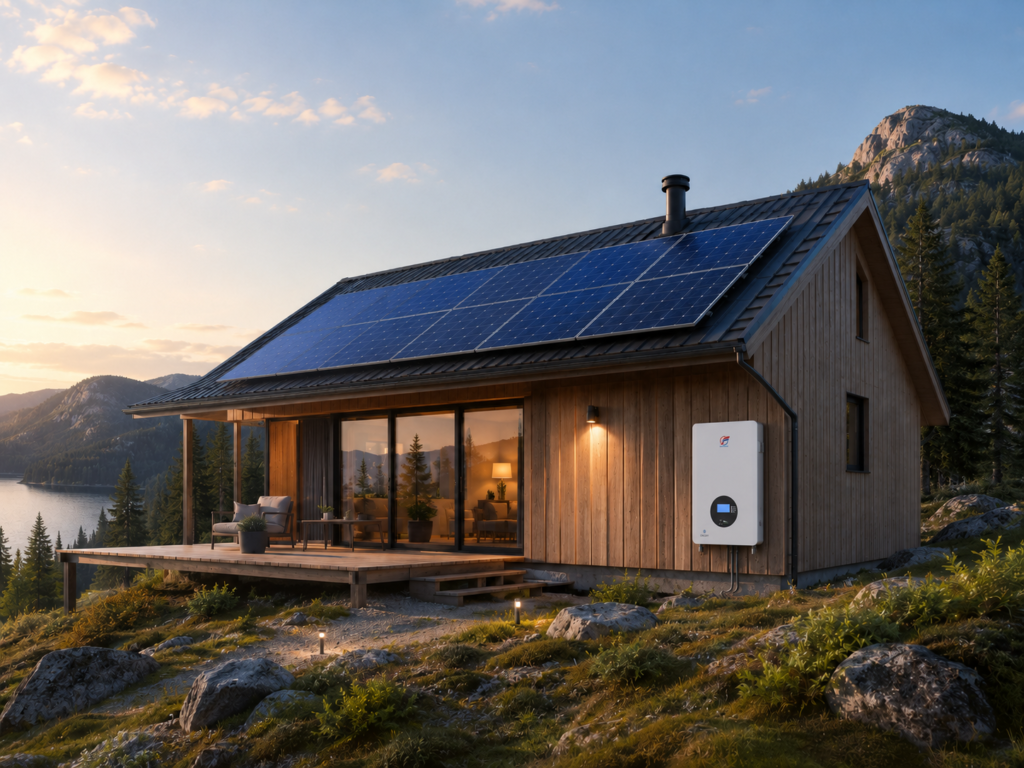

Home Backup Power
Support essential loads through a compatible inverter during grid interruptions.
→

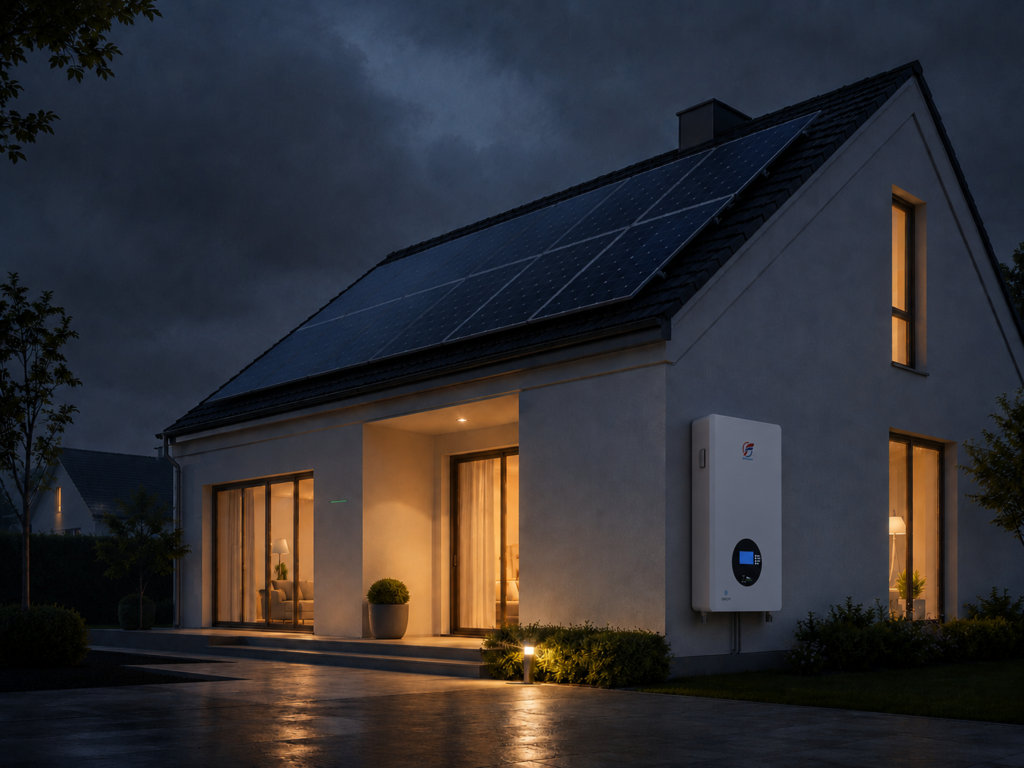

Hybrid & Off-Grid Systems
Wall-mounted storage for cabins, remote properties and distributed systems.
→
Not for engine starting — for cranking applications see our dual-purpose marine series.
— PACKAGING & LOGISTICS
Prepared for project samples, wholesale orders and export shipment
| Standard packing | Protective foam + export carton |
| Battery size | 675 × 400 × 185mm |
| Net weight | 59 ± 0.5kg |
| Pallet loading | Confirmed after final carton design |
| Transport documents | UN38.3 / MSDS subject to order configuration |
| Shipping options | Sea freight · Rail · DDP channels where available |
A
Protected export packaging
Foam suspension and reinforced cartons help protect the enclosure, display and terminals during transport.
B
Sample and bulk-order packing
Packaging can be adapted for engineering samples, distributor stock or private-label retail programs.
C
Pre-shipment inspection
Batch records, functional checks, appearance inspection and packing photos can be provided before dispatch.
D
Destination-based shipping plan
Confirm destination, quantity and trade term so the sales team can evaluate the available battery logistics route.
PRODUCT FAQ
What buyers ask about the 51.2V 100Ah wall-mounted battery
The battery includes CAN and RS485 communication hardware, but compatibility depends on the exact inverter model, protocol version and pin definition. Send the inverter brand and full model number so the engineering team can confirm the communication file and testing requirement.
The platform includes RS485 parallel communication. The permitted battery quantity, cable size, addressing method, current limit and firmware version must be confirmed in the approved system configuration before installation.
The product data uses a 51.2V nominal system and a 58.4V charge-voltage reference. The final charge profile, low-voltage cutoff and communication-controlled settings should follow the approved datasheet and inverter protocol configuration.
Typical options include logo and label artwork, enclosure color, packaging, manuals, BMS parameters, CAN/RS485 communication settings and project documentation. Structural changes require engineering evaluation and may change MOQ.
The required document package depends on the final battery configuration and destination market. Confirm the product-specific CE, UN38.3, MSDS and IEC 62619 scope with Safecloud before publishing the claim or placing a bulk order.
Provide the order quantity, destination country, inverter brand and model, required communication protocol, OEM branding needs, installation application and target delivery date. This allows the sales and engineering teams to prepare a more accurate configuration and price.
Get factory pricing for the FT-48100 wall-mounted battery
Send your quantity, destination market, inverter model and OEM requirements. Safecloud will review the product configuration, communication protocol, documentation scope and shipping plan.
