MODEL SC-RV12200 · 12V SERIES · IN PRODUCTION

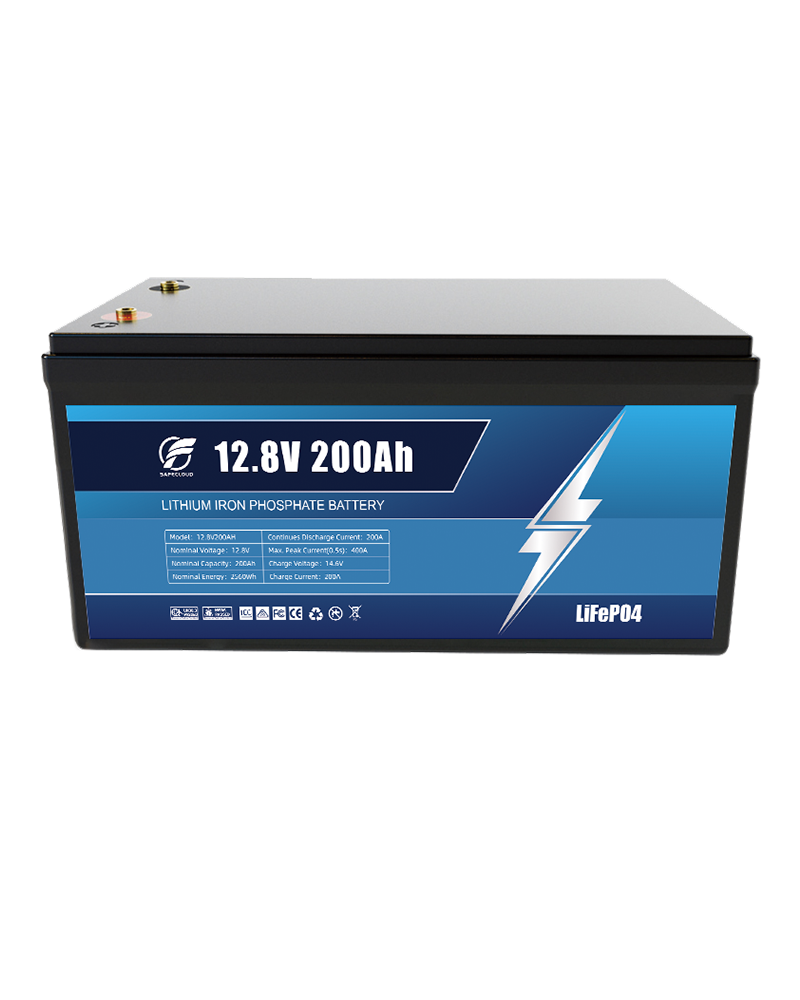

12V 200Ah LiFePO4 Battery — OEM & Wholesale, Bluetooth BMS, Low-Temp Protection
- CE
- FCC PART 15
- UN38.3
- RoHS
- MSDS
- 5-YR WARRANTY
Energy / Usable capacity
2,560Wh · 100% DoD
BMS continuous / surge
200A / 400A (5s)
Cycle life
4,000+ @80% DoD
Cells
Grade-A CATL / EVE prismatic
Monitoring
Bluetooth 5.0 · white-label app
Low-temp protection
Charge cutoff 32°F / 0°C
Size / Weight
Group 31 · 20.9kg / 46 lbs
10 units
MOQ
7 days
SAMPLE
15–25d
LEAD TIME
OEM ✓
YOUR BRAND
Engineer response in < 24h · Tiered pricing at 50 / 200 / 1,000 units · NDA available
10 units
MOQ
15–25 days
PRODUCTION LEAD
FOB Shenzhen
TRADE TERMS · DDP AVAIL.
5-year
OEM WARRANTY
UN38.3
AIR & SEA CERTIFIED
— WHY THIS PLATFORM SELLS
The spec sheet your retail competitors can't match at this price
Grade-A Prismatic Cells
CATL / EVE cells with batch traceability, matched to ≤2% capacity deviation. Cell source written into your contract.
200A BMS, 400A Surge
Runs 2,000W+ inverters, A/C units and induction loads. 20+ protections with 30s auto-recovery after overload.
Bluetooth 5.0 Monitoring
SOC, voltage, temperature and cycle count in a white-label app under your brand.
Low-Temp Charging Protection
BMS cuts charge at 32°F / 0°C. Self-heating variant available for four-season markets.
6,000+ Cycle Design Life
10-year design life at 80% DoD — the warranty math that keeps your claim rate under 0.5%.
Group 31 Drop-In
BCI Group 31 envelope replaces AGM without tray modification — the #1 retail conversion driver.
— FULL SPECIFICATIONS
SC-RV12200 technical specifications
Complete datasheet with test conditions available as PDF — request with your quote.
| Electrical | Mechanical & Environment | ||
|---|---|---|---|
| Nominal voltage | 12.8V | Dimensions (L×W×H) | 330 × 172 × 220 mm |
| Nominal capacity | 200Ah / 2,560Wh | Weight | 20.9 kg / 46 lbs |
| Charge voltage | 14.2 – 14.6V | Case material | ABS, IP65 option |
| Max charge current | 100A (0.5C) | Terminals | M8, 11–13 N·m |
| Continuous discharge | 200A | Charge temp range | 0°C ~ 50°C |
| Surge discharge | 400A (5s) | Discharge temp range | -20°C ~ 60°C |
| Cycle life | 6,000+ @80% DoD | Storage | -10°C ~ 45°C, 50% SOC |
| Series / Parallel | 4S / 4P (4S4P max) | Ingress | IP54 std · IP65 option |
| Self-discharge | <3% / month | Certifications | CE · FCC · UN38.3 · RoHS |
Specifications at 25°C ambient unless noted · Subject to engineering confirmation per OEM configuration
— SYSTEM EXPANSION & CAPACITY FAMILY
One platform, 12.8V to 51.2V — up to 40.9kWh in 4S4P
Series to 48V systems, parallel to 800Ah banks. End users start with one battery and expand — your SKU keeps selling.
| Model | SC-RV12200 (this page) | SC-RV12100 | SC-RV12300 | SC-RV12400 |
|---|---|---|---|---|
| Capacity | 200Ah / 2,560Wh | 100Ah / 1,280Wh | 300Ah / 3,840Wh | 400Ah / 5,120Wh |
| BMS | 200A | 100A | 200A | 250A |
| Form factor | Group 31 | Group 24/27 | Custom compact | Custom |
| Bluetooth | Standard | Optional | Standard | Standard |
| Heating option | Available | Available | Available | Available |
Full range: 12V 50–400Ah · 24V 50–300Ah · 48V ESS — mixed-model container loading supported
— OEM & PRIVATE LABEL
Ship it under your brand — this is where we beat the retail giants
Retail brands sell you nothing but their margin. As the factory, we build this exact platform under your logo with your firmware spec.
🏷️
Branding & Case
Logo printing / laser engraving, custom case color, custom label artwork with your certifications block.
⚙️
BMS Firmware
Charge profiles, protection thresholds, alarm logic and comms (CAN / RS485) configured to your spec and locked.
📱
White-Label App
Your brand on the iOS / Android listing. Custom splash, colors and support links.
📦
Retail Packaging
Confirm protection thresholds, current requirements and wiring guidance before project deployment.
📄
Certification Transfer
Recommend battery quantity, charger compatibility and system wiring for RV, boat, solar and backup projects.
🔧
Hardware Options
Terminal type, dual posts, heating pads, IP65 sealing, custom capacity between listed models.
— APPLICATIONS
Where your customers will run this battery
RV & Camper Van
Drop-in AGM replacement · boondocking banks
→
Marine & Boat
House banks · 30–70lb trolling motors
→
Off-Grid & Solar Storage
4S4P expansion to 40.9kWh systems
→
Not for engine starting — for cranking applications see our dual-purpose marine series.
— PACKAGING & LOGISTICS
Packed for containers, certified for transport
| Packing Data | |
|---|---|
| Unit carton | 395 × 240 × 290 mm |
| Gross weight | 22.4 kg / carton |
| Pallet quantity | 24 units / pallet |
| 20' container | ~480 units |
| 40' HQ container | ~1,080 units |
| Transport docs | UN38.3 · MSDS · Sea/Air DGD |
A
UN38.3 certified hazmat packaging
Double-wall cartons with foam suspension; drop-tested per transport regs for sea and air freight.
B
Retail or bulk packing
Full-color retail boxes for D2C programs, or bulk foam trays for assembly-line customers.
C
DDP available to US / EU / AU
We handle customs clearance and last-mile to your warehouse — one invoice, zero surprises.
D
Pre-shipment QC report per batch
Capacity test, IR test and photos of your production run shared before container loading.
PRODUCT FAQ
What buyers ask about the SC-RV12200
A 14.2–14.6V LiFePO4 charger. At 40A (0.2C) full charge takes ~5 hours; at 100A (0.5C) roughly 2 hours to 97%. We provide a charging guide PDF with your branding for end-customer documentation.
Yes — up to 4S (51.2V) and 4P (800Ah), max 4S4P for a 40.96kWh system. The BMS is validated for pack-level balancing in these configurations; we document the pairing rule (same model, same firmware generation) for your installers.
No — it’s a deep-cycle platform. The BMS is optimized for sustained output, not cranking surge. For starting applications we offer a dual-purpose marine series; being honest about this in your listing reduces returns.
Case color and logo, label artwork, BMS charge/protection parameters, Bluetooth app branding, retail packaging, terminal hardware, heating option, and capacity variants between listed models. MOQ 10 for branding-level OEM; firmware and tooling changes are quoted per project.
Samples in 7 business days. Production 15–25 days after sample approval depending on volume and customization. Repeat orders skip sampling and ship on the production lead time alone.
Warranty docs are issued under your brand. Claims route through your support to our engineering team with BMS log data; batch traceability lets us isolate issues to specific production runs. Historical claim rate across the 12V line is under 0.5%.
Get wholesale pricing on the SC-RV12200
Tell us your volume, market and OEM requirements. BOM-level tiered pricing and a branded sample plan within 24 hours.
